Key Structural Features
◆
The unit adopts a professional-grade sleeve spindle with a monolithic design, supported by a high-precision 3-front/2-rear bearing configuration. Coupled with a rear-drive servo system, it maintains exceptional stiffness and operational stability during heavy loads. The 65° slant bed, engineered from high-grade resin-sand casting with an intensive ribbed-plate architecture, combines superior anti-vibration properties with an ergonomic workflow for seamless chip disposal.
◆
Precision Feed System & Tooling
High-Speed Feed Mechanism: Each axis features a direct-drive configuration with servo motors and pre-tensioned precision ball screws. Integrated with high-rigidity linear guideways and an automatic lubrication system, it achieves a 30 m/min rapid traverse and micron-level positioning accuracy while effectively minimizing thermal displacement.
T-Type Gang Tooling: The unique T-style gang tool post supports versatile multi-tool configurations, ensuring rapid and seamless tool indexing for maximized throughput.
◆

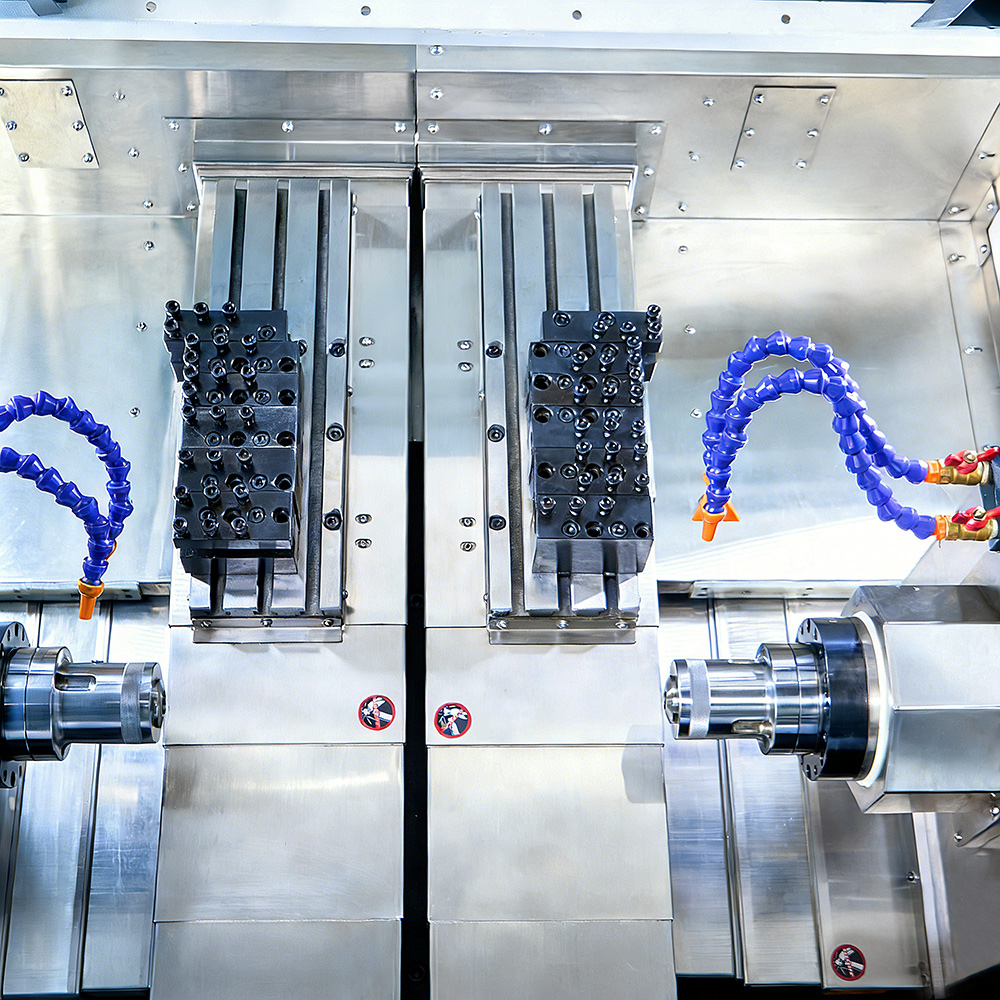

Synchronized Twin-Spindle & Dual-Gang-Tooling
The synchronized operation of twin spindles and dual gang tool posts enables dynamic part hand-off (re-gripping) between the main and sub-spindles. This allows for complete multi-surface machining in a single setup, significantly reducing geometric tolerances and ensuring superior part consistency.
◆
Hydraulic & Cooling Performance
Equipped with premium Taiwanese variable pumps and solenoid valves, the system features an integrated air cooler to guarantee quiet operation and optimal oil temperature stability during prolonged cycles.
◆
The machine features a fully enclosed protective housing with a sleek, minimalist aesthetic and superior waterproof sealing. The lightweight sliding doors are integrated with safety interlocks, ensuring full compliance with high-standard modern workshop requirements for operator safety and environmental cleanliness.
Product Display
Main Technical Specifications
| Item | Unit | NXX-26AS | NXX-36AS | |
| Max. Swing Diameter Over Bed | mm | Φ400 | Φ500 | |
| Max. Turning Length | mm | 100 (Unidirectional) | 200 (Unidirectional) | |
| Max. Swing Diameter Over Tool Slide | mm | Φ125 | Φ200 | |
| Max. Machining Part Diameter (Disk/Shaft) | mm | Φ350/Φ125 | Φ450/Φ200 | |
| Main/Sub-spindle Bore Diameter | mm | Φ36 | Φ45 | |
| Main/Sub-spindle Max Bar Capacity | mm | Φ25 | Φ35 | |
| Main/Sub-spindle Speed Range | r/min | 0–5000 | 0–5000 | |
| Main/Sub-spindle Speed Steps | Step | CV | CV | |
| Main/Sub-spindle Nose Form | Flange Type A2-4 | Flange Type A2-4 | ||
| Main/Sub-spindle Motor Power | kW | 7.5 | 5.5 | |
| Slant Bed Angle | Angle | 65° | 45° | |
| X1/X2 Axis Rapid Traverse Rate | m/min | 30 | 24 | |
| Z1/Z2 Axis Rapid Traverse Rate | m/min | 30 | 30 | |
| X1/X2 Axis Max Stroke (Bi-directional) | mm | 1000 | 1000 | |
| Z1/Z2 Axis Max Stroke | mm | 350 | 355 | |
| X1/X2 Axis Servo Motor Power | kW | 1.5 | 1.3 | |
| Z1/Z2 Axis Servo Motor Power | kW | 1.5 | 1.8 | |
| Main/Sub-spindle Runout Accuracy | mm | ≤0.003 | ≤0.003 | |
| Main/Sub-spindle Face Flatness | mm | ≤0.01/Φ100 | ≤0.01/Φ100 | |
| Main/Sub-spindle Coaxiality (for Synchronization) | mm | ≤0.01 | ≤0.01 | |
| Repeatability | X1/X2 Axis | mm | ±0.0025 | ±0.0025 |
| Z1/Z2 Axis | mm | ±0.0025 | ±0.0025 | |
| Main/Sub-spindle Repeatability | mm | 0.01 | 0.01 | |
| Standard Turret Type | Gang-type Tooling | Gang-type Tooling | ||
| Max. Tool Capacity | pcs | 16 | 16 | |
| Tool Size | O.D. Tool | mm | 20×20 | 20×20 |
| Boring Bar Diameter | mm | Φ25 | Φ25 | |
| Total Power Capacity | kW | 22 | 18 | |
| Machine Weight (Approx.) | kg | 3500 | 4600 | |
| Machine Overall Dimensions | mm | 2600×1800×2170 | 3350×1810×2260 | |
Frequently Asked Questions
Q What is the difference between the NXX-26AS and NXX-36AS models?
The NXX-26AS features a 65° slant bed with a max swing diameter of Φ400mm and a bar capacity of Φ25mm, while the NXX-36AS offers a 45° slant bed, a larger max swing diameter of Φ500mm, and a bar capacity of Φ35mm — making it suited for heavier, larger-diameter workpieces.
Q What does the synchronized twin-spindle feature enable?
The synchronized twin-spindle and dual gang tool post system enables dynamic part hand-off (re-gripping) between the main and sub-spindles. This allows complete multi-surface machining in a single setup, significantly reducing geometric tolerances and improving part consistency.
Q What rapid traverse rate does the machine achieve?
The NXX-26AS achieves a rapid traverse rate of 30 m/min on both X and Z axes. The NXX-36AS achieves 24 m/min on the X axis and 30 m/min on the Z axis, supported by direct-drive servo motors and pre-tensioned precision ball screws.
Q How is thermal displacement minimized in these CNC lathes?
Thermal displacement is minimized through the integration of high-rigidity linear guideways, an automatic lubrication system, and an integrated air cooler within the hydraulic circuit. These features maintain optimal oil temperature and structural stability during prolonged machining cycles.
Q What is the positioning repeatability of these machines?
Both the NXX-26AS and NXX-36AS achieve a positioning repeatability of ±0.0025mm on both X and Z axes, with a spindle runout accuracy of ≤0.003mm, ensuring micron-level precision for demanding applications.
Q What safety and enclosure features are included?
The machines feature a fully enclosed protective housing with superior waterproof sealing and a sleek minimalist design. Lightweight sliding doors are integrated with safety interlocks to ensure full compliance with modern workshop safety and environmental cleanliness standards.
